EFM Logo
ELECTRIC FORCE MEASUREMENT

Manufacturers of LOADCELLS, DIGITAL INDICATORS, WEIGHING SYSTEMS AND STRUCTURES.

EFM are a specialist manufacturer of load cells and related electronic and mechanical equipment. We have always designed all our products, and usually installed and commissioned them, as well as maintaining them for life. This extents to later reinstallation, even for a different owner. As a result of this continuous development process, which began in 1973, we can provide equipment and designs which will be suitable for their purpose and reliable.

Our products include the following:

LOAD CELLS
Shear Beams in Aluminium And Stainless 50 kg to 40 Tonnes
Disc compression from 100 kg to 40 Tonnes.
Compression strut.
Centre hole compression from 5 Tonnes to 1000 Tonnes.
Tension from 100 kg to 50 tonnes.
Single point Shear cells.
Cantilever Pin cells, from 100 kg to 100 Tonnes, stainless, sealed.
Simply supported Pin cells, 10mm to 200mm diameter, up to 1 metre long, stainless, sealed.
Multi component wind tunnel balances.
Special transducers: Finger and palm force, steering wheel, brake pedal, motorcycle handgrip and aircraft control column.

DIGITAL INDICATORS
OIML Weighing indicators.
Non-microcomputer indicators with overload and slack rope set points for high reliability applications such as bucket wheel excavator guy ropes.
Crane weighing system indicators.
Multi ingredient, multi recipe batching sustems, for feed mills, food and chemical processing, plastic compounding etc.
Weight recorders and transmitters, including throughput weighing.
Dispensing controllers.
Multi channel Indicators, manually switched or program controlled.
Counting scale indicators.
Belt weighing indicators.
New LC-9-1 (PDF brochure.)

SYSTEMS AND STRUCTURES

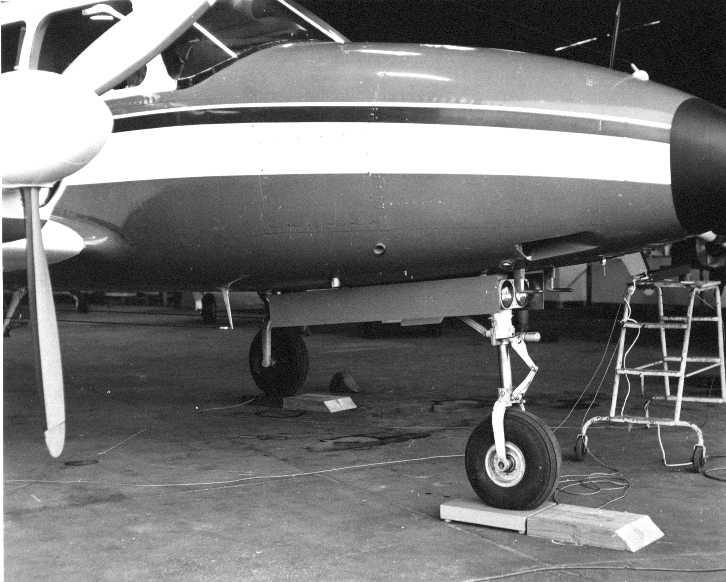

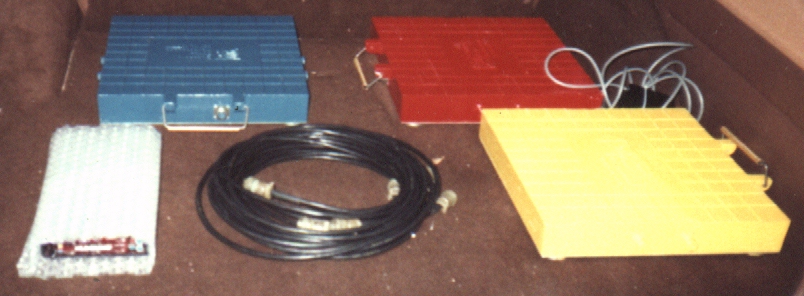

Aircraft weighing sets for general aviation, military, and airline weight and balance control. Download data sheet(.doc)

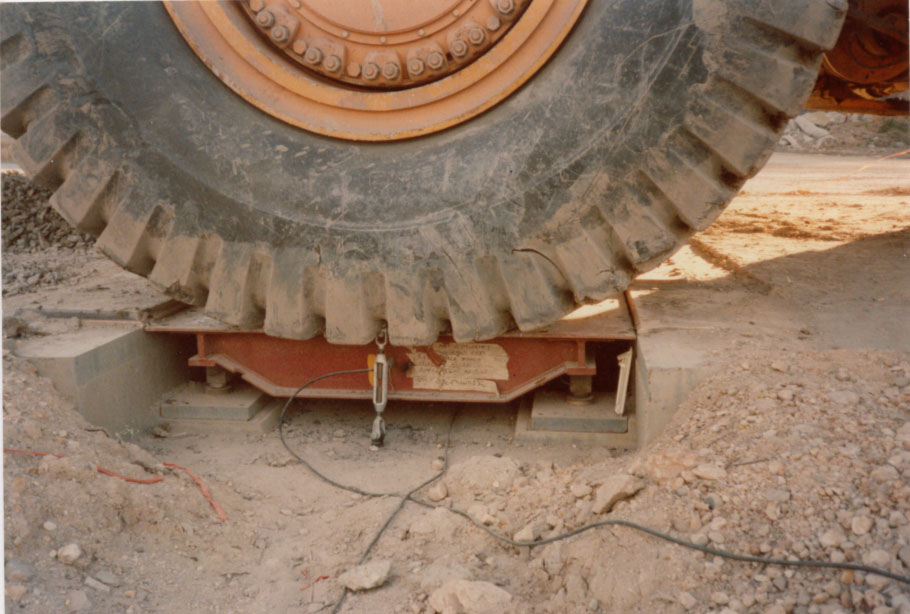

Mine truck axle weighers to 300 Tonnes per axle.
Portable crane scales.
Wire rope tension scales.
Crane overload systems.
Conveyor roller weighing axles.
Hopper and tank weighing.
Steam pipe hanger load measurement.
Ship propellor shaft location transducers.
Special Platform scales.
Weighing systems on mixers and vehicles.

3 HILL ROAD NORTH BALWYN, VICTORIA 3104 AUSTRALIA.
TEL./FAX. 613 98598356, 613 52615218, Mobile 0439622380
For enquiries, click here to EMAIL TO EFM
